Green Pin® Dee Shackle BN - GPGDMB28

Product Description

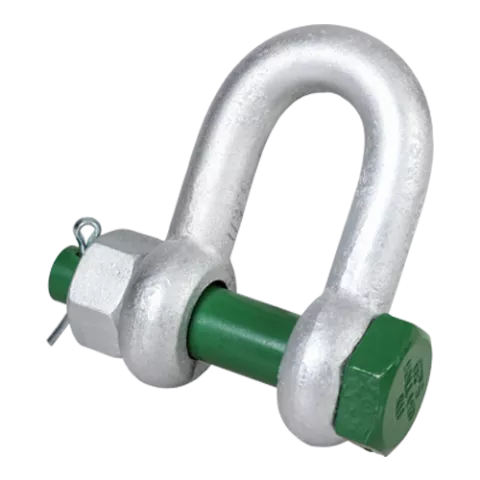

The Green Pin® Dee Shackle BN (G-4153) is a Grade 6 standard dee shackle manufactured by Van Beest for stable in-line lifting connections. Its safety bolt and nut connection is designed for dependable field use, while the hot-dip galvanized finish supports durability in industrial, construction and marine environments. This model is specified to ASME B30.26, EN 13889, ISO 2415, supporting use in professionally engineered lifting and rigging systems.

With a Working Load Limit of 9.5 tonnes and a 28 mm body diameter, a 32 mm pin diameter, the GPGDMB28 provides a size-specific solution for demanding lifting assemblies. The alloy-steel body is quenched and tempered for a strong, reliable connection, and its geometry supports correct load alignment when selected and used in accordance with the applicable rigging plan.

The straight-sided dee profile helps maintain alignment in predominantly in-line loading, while the safety bolt is suited to longer-term installations. As part of the Van Beest Green Pin® range, the G-4153 is designed for traceability, consistent performance and straightforward inspection in professional lifting operations.

Material: Grade 6 alloy steel Hot-dip galvanized finish

Compatible With: Master links Lifting hooks Lifting beams Wire rope slings

Uses: Industrial lifting Long-term rigging assemblies Construction and fabrication In-line load connections

Key Features: WLL: 9.5 t Body diameter: 28 mm Pin diameter: 32 mm Grade 6 alloy steel Safety bolt and nut Hot-dip galvanized finish Conforms to ASME B30.26 Conforms to EN 13889 Conforms to ISO 2415 Van Beest Green Pin® product
